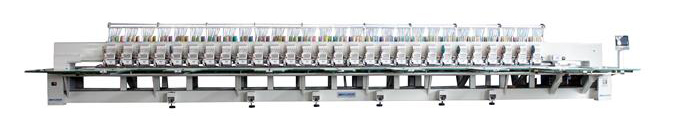

Sequin series




Max speed 900rpm.High productivity,

Sequin speed:750rpm

Main motor :servo motor

XY frame driving for servo motor or three phase step motor

Computer:dahao computer system,color LCD, 5inch/8inch/10inch/touch LCD monitor optional

HOOK:imported Japanese hook

Guide rail:linear guide

linear guide rail in head

Sitch length:0.5-12.7mm

Memory capacity of needle stitch:100-200million  USBport ready

The max embroidery area: X direction 150 -1100mm. Y direction 300-2000mm
the specification of sequin: 2-22mm (round, square, plum, star shapes, etc.)

the thickness of sequin: 0.15mm-0.20mm

Power input:220v/380v ±10%;Frequency 50±1HZ

Format of design: DST/DSB

LANGUAGE:CHINESE,ENGLISH,SPANISH,FRENCH,PORTUGUESE,TURKISH,KOREAN,ARABIC.THAI

Optional:auto trimmer system. easy cording device.auto lubricating system

Single sequin device, double sequin devices, twin sequins.four sequins device




MODEL


HEAD


NEEDLE


Embroidery area


length


width


Inner frame size

JY-J 928

 28

 9

330X660X1300
